Calkins
Sailboat Plans
Here are some small
traditional sailboats designed by George Calkins. They all sail exceptionally well and are easily rowed when
the wind is fickle. The larger designs lend well to double rowing with
two rowing stations. With plenty of room to pack some gear these

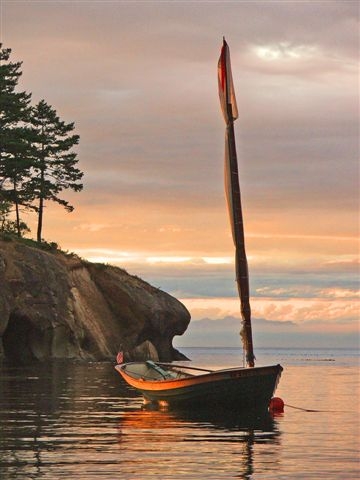

seaworthy boats are well suited for beach camp cruising. We’ve made
some wonderful camp trips exploring the San Juan Islands in our 17’
Salmon Wherry. The seaworthiness of these traditional designs is
something to behold when the wind pipes-up and conditions deteriorate.
The amount of
building details for these designs varies.
Read the descriptions to see what is available. No instructions
are included. The builder should have intermediate knowledge and skills
of wooden boat construction.
If
you are interested in building either the 17’ or 19’ wherry from the
lines available then you should purchase the 15 ½” wherry plans for
complete construction details.

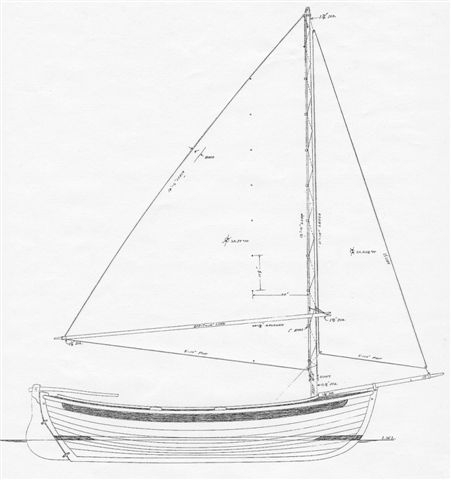

Scud
– 12’ Norwegian Double-ender
Length 12’
Beam 4’- 8”
Draft 10”
Displ. 225 lbs
Sail area – 79 s.f.
Plans consist of: Lines drawing (no offsets), hull profile & sail
plan. $35

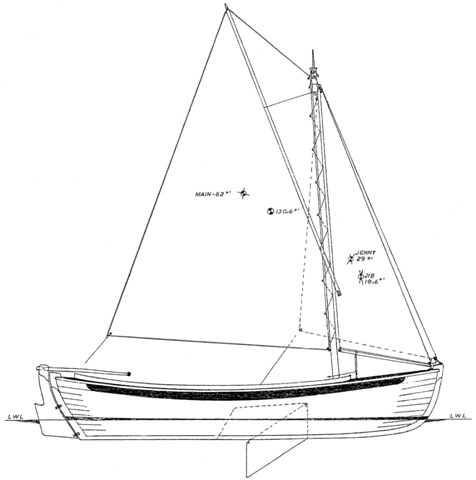

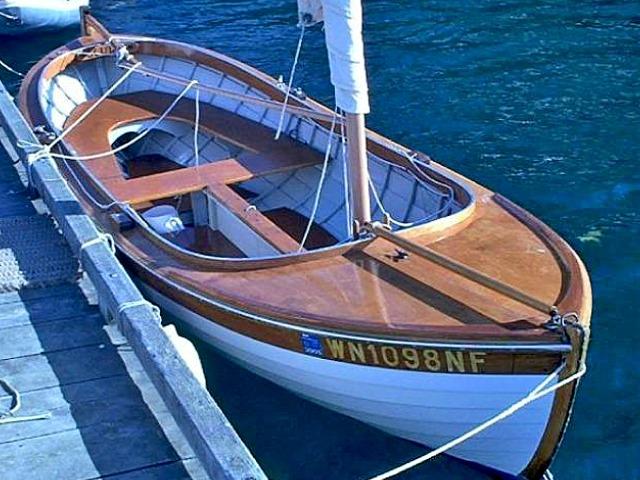

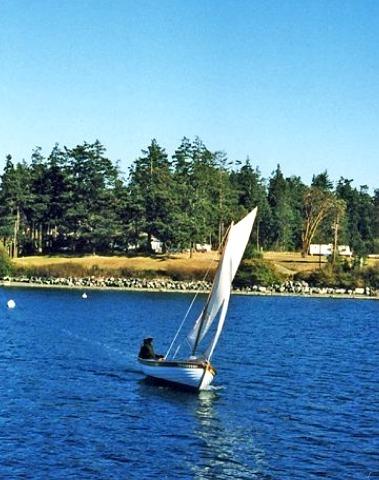

Scud
II – 16’ Norwegian Double-ender
Length 16’
LWL 14’- 9.5”
Beam 5’- 0”
Draft 10”
Sail area 111 s.f.
Plans consist of: Lines & offsets, hull profile &
sail plan. $40

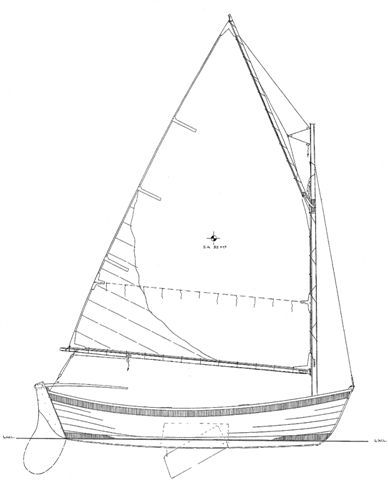

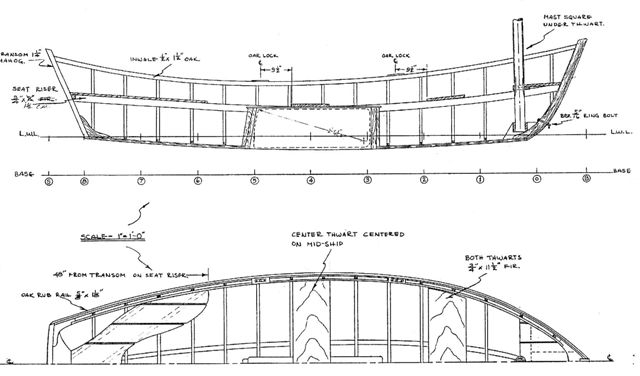

Tenas
Tiama - 14’ Modified West
Coast Salmon Wherry
Length 13’-
7.75”
LWL 11’- 6”
Beam 4 - 6”
Draft 4.5”
Sail area:
Gaff rig 95 s.f.
Sprit rig 70 s.f.
Plans consist of:
Lines & offsets, hull profile & two sail plans, construction
details. $70

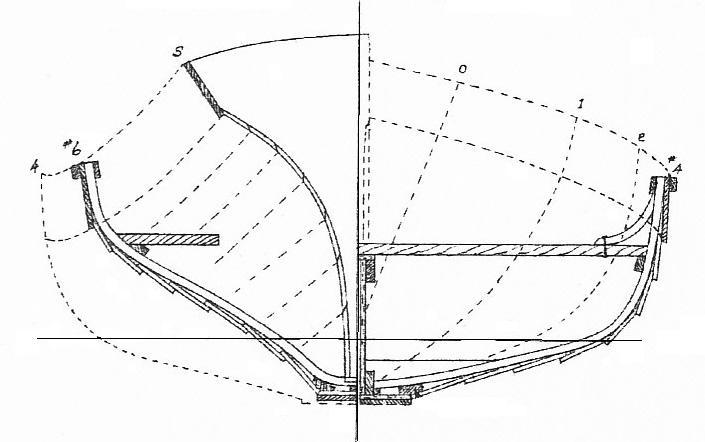

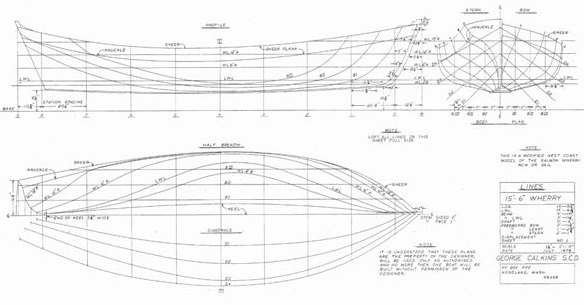

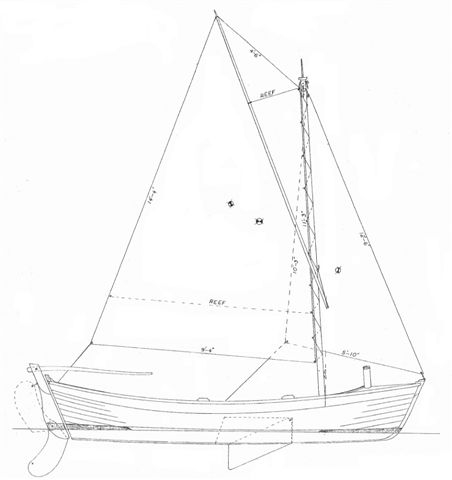

15’ – 6” Salmon Wherry – Modified West Coast Salmon
Wherry
Length 15’- 6”
LWL 13’- 6”
Beam 4’- 10”
Draft 6”
Displ. 395 lbs
Sail area 111 s.f.
Plans consist of: Lines & offsets, hull profile &
sail plan, jig & mold set-up, construction details. $80

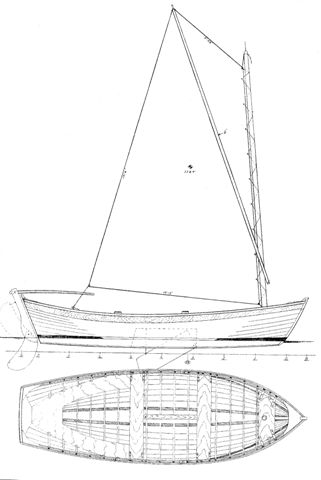

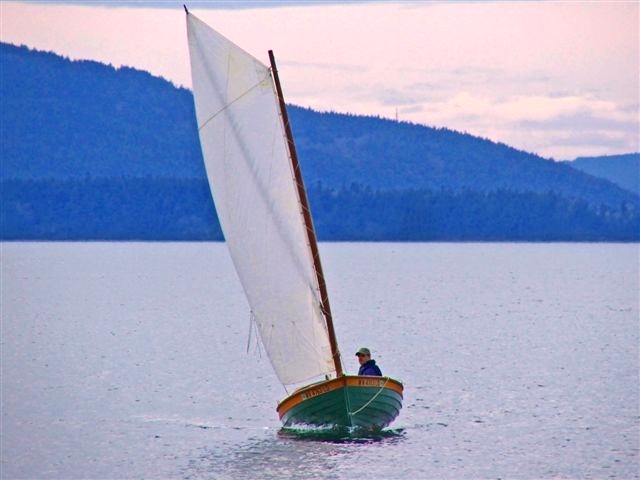

17’ Salmon Wherry – Modified West Coast Salmon Wherry
Length 17’
LWL 14- 8”
Beam 5’- 6”
Draft 6”
Sail area 114 s.f.
Plans consist of:
Lines drawing (no offsets), hull plan/profile & sail plan.
$35
Use the 15’ – 6” wherry plans for const. details.

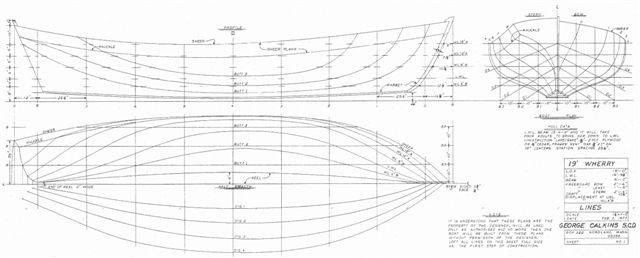

19’ Salmon Wherry - Modified West Coast Salmon
Wherry
Length 19’
LWL 16’- 9.5”
Beam 6’
Draft 10.5”
Plans consist of: Lines drawing only. $25
Use the 15’ – 6” wherry plans for const. details.
|
